Quick Details

  • Type: Digital Printer
  • Condition: New
  • Plate Type: Flatbed Printer
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Yingcai-NTEK
  • Model Number: YC2513G
  • Usage: Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Ceramic tile,wall,Plastic/phonecase/Iron
  • Automatic Grade: Automatic
  • Color & Page: Multicolor
  • Voltage: 220V
  • Gross Power: 2000w
  • Dimensions(L*W*H): L3970mm*W2100mm*H1400mm
  • Weight: 1500KG
  • Certification: CE Certification,SGS
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product Model: YC2513G
  • Ink type: UV Curable Ink
  • Color: Multi Color Printing
  • Print head: Seiko SPT1024GS*5
  • Printing Size: 2.5m*1.3m
  • Printhead arrangement: C M Y K W opetioanl
  • Print Speed: 15-25sqm/h
  • Printhead number: 2
  • Life of printed image: 5years(outdoor),10years(indoor)
  • Media Thickness: 0-100mm, higher can be customized

Packaging & Delivery

Packaging Details Wooden box or as customer's requirements-2017hot sale industrial large format factory industrial uv phonecase printer with high resolution for sale in China
Delivery Time within 5days after receive your payment
Product Description

2017hot sale industrial large format factory industrial inkjet led acrylic uv printer with high resolution for sale in China

UV Flatbed printer definition

Flatbed Digital printing is the reproduction of digital images using inkjet printing, typically on plastic or paperboard, although a wide variety of materials can be printed (common, photographic paper, film, cloth, plastic, etc.). Flatbed digital printers use inks made of acrylic monomers that are then exposed to strong UV-light to cure, or polymerize them. This process allows for printing on a wide variety of surfaces such as wood or metal, carpet, tile, and even glass. The adjustable printing bed makes it possible to print on surfaces ranging in thickness from a sheet of paper often up to as much as several inches.

Specifiction of UV Flatbed printer YC2513G:

SPECIFICATIONS FOR UV Flatbed printer YC2513S
Product Model
YC2513G
Printhead Technology
Drop-on demand piezo electric
Printhead control
Printhead voltage is software adjustable
Printhead Type
Seiko SPT1024GS*5
Printhead Number
5
Ink Characteristics
UV Curing Ink made in USA
Ink reservoirs
Refillable on the fly while printing/1000ml per color
Lamp
UV LED lamp/Mercury lamp made in USA
Color Control
ICC based color,curves and density adjustment
Printhead arrangement
C M Y K W
Printhead Cleaning System
Positive Pressure Cleaning
Guide Rail
Taiwan HIWIN
Servo motor
Panasonic servo motors
Working Table
Vacuum Sucking
Working size
2.5x1.3m
Weight
1500KG
Print Interface
USB2.0
Media Thickness
0-100mm, higher can be customized
Printing Speed
Draft mode
30sqm/h (7 colors)
60sqm/h(4 colors)
Standard mode
20sqm/h (7 colors)
32sqm/h(4 colors)
High resolution mode
15sqm/h (7 colors)
20sqm/h(4 colors)
Life of printed image
5Years(outdoor),10years(indoor)
File Format
TIFF,JPEG,Postscript3,EPS,PDF etc.
RIP Software
UltraPrint , Photoprint
Power Supply
220V 50/60Hz(10%) >15A
Operation Environment
Temperature 20 to 30℃,Humidity 40% to 60%
Warranty
1 year exclude the printhead,ink filter, ink pump, slider block etc
Aftersales Service
Engineers available to service machinery overseas

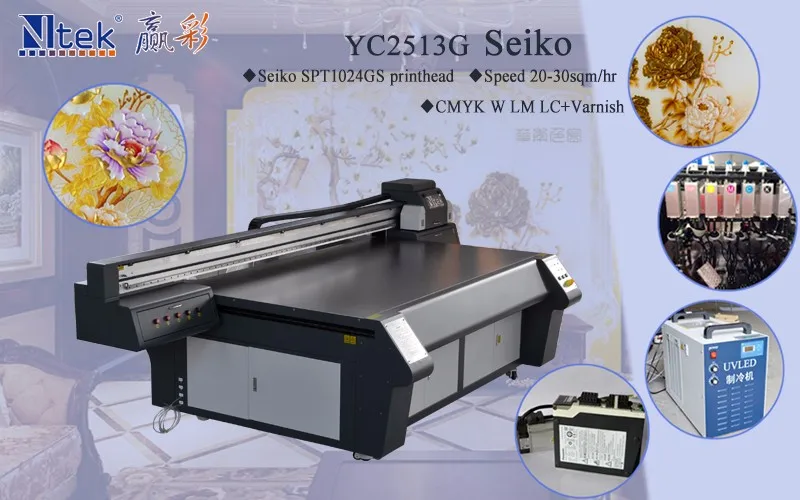

UV Flatbed printer Overview:

Main Features

1. Equiped with Imported Industrial printhead with 1020 nozzles
2. Fast fiber data trasmission technology
3.With 8 heads for bright color, suitable for high speed and high quality industrial production
4.16sqm/h-25sqm/h for production printing
5.White ink circulation system to avoid white ink precipitating
6.6 zones vacuum table for easy operation and save energy
7.Long-lasting UV LED lamps are safe, energy efficient and generate minimum heat;
8.Double guide and double leadscrew is used for a stable and precise movement

Youtube Printing Video:

https://www.youtube.com/watch?v=_IkhtaIZB-s

https://youtu.be/GIrA-QEHQfY

2017hot sale industrial large format factory industrial inkjet led acrylic uv printer with high resolution for sale in China

Certifications

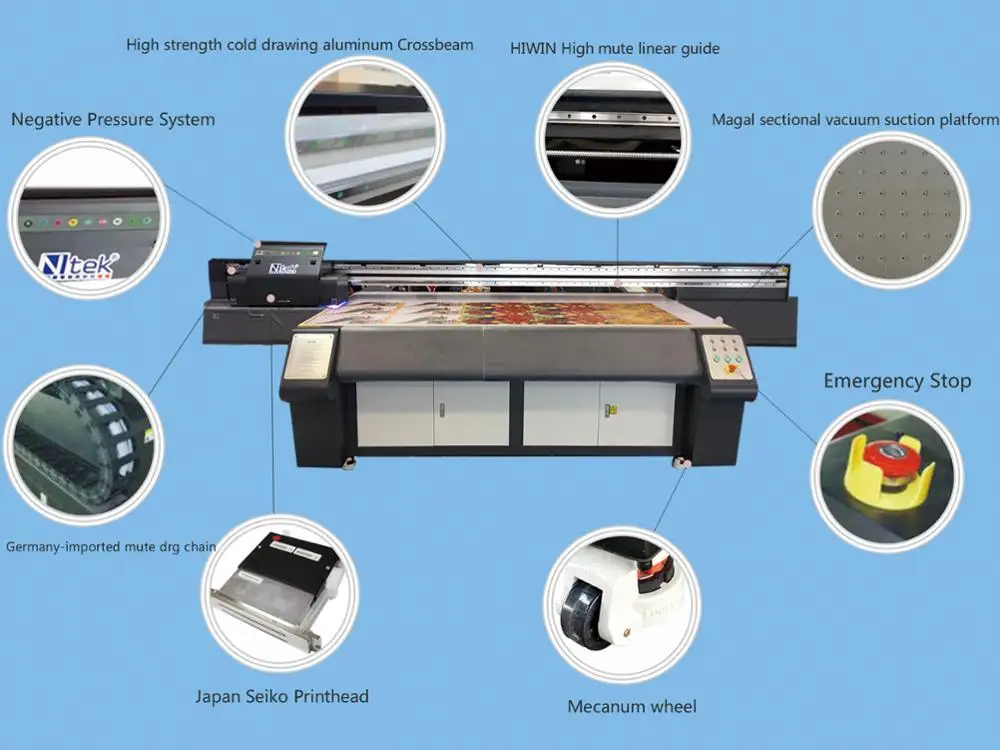

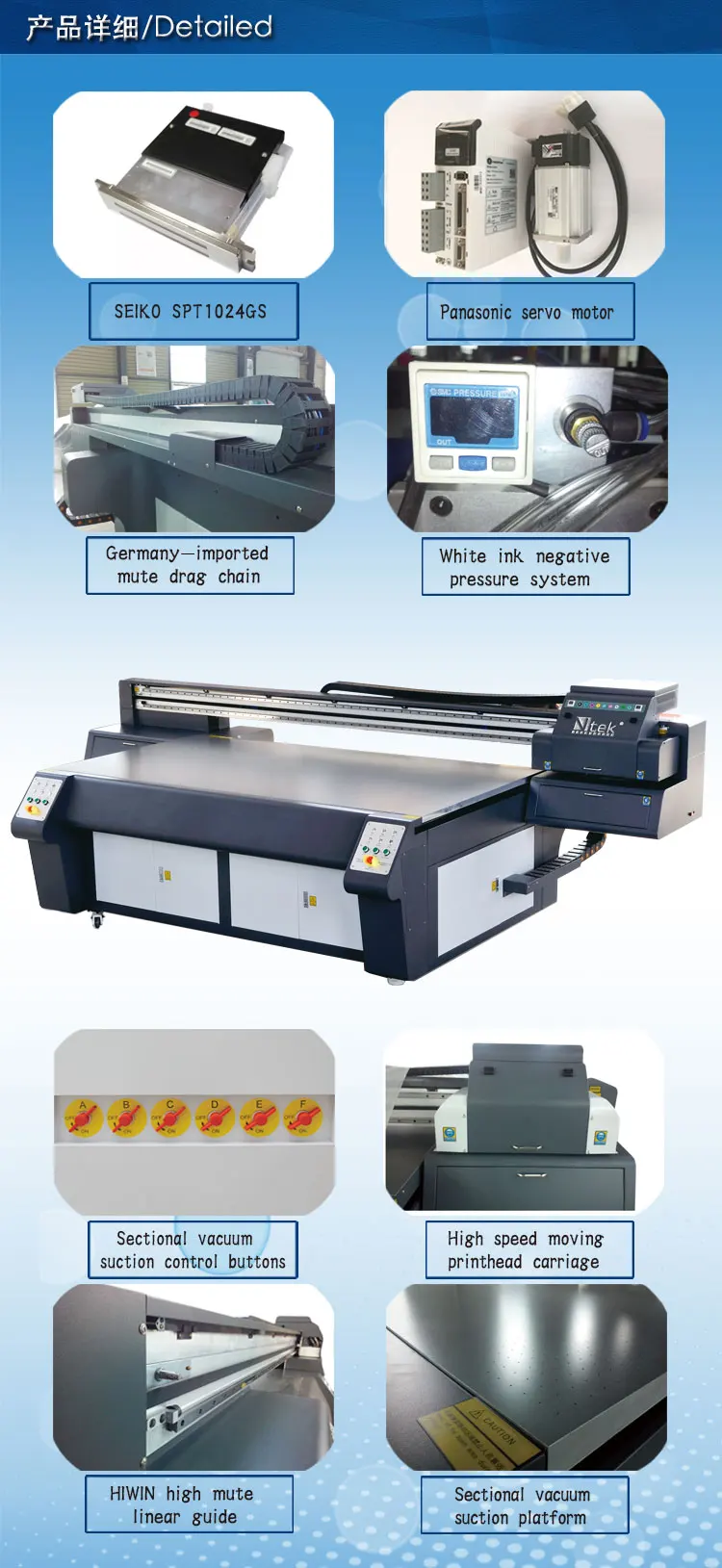

Detailed Images

UV Flatbed printer Applications:

A.Decoration industry
B.Glass, Ceramic industry;
C.Advertising&Sign industry;
D.Furniture and personalized products etc.

UV Flatbed printer Applicable material:

The UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.

2017hot sale industrial large format factory industrial inkjet led acrylic uv printer with high resolution for sale in China

Printing samples:


Exhibition&Customers

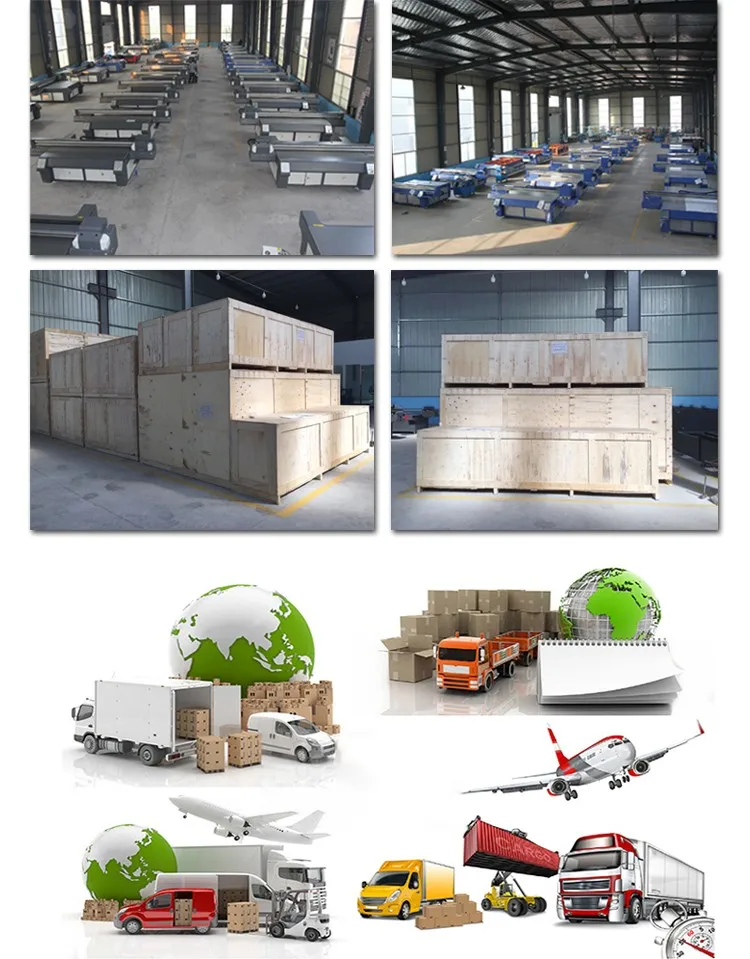

Packing & Delivery

2017hot sale industrial large format factory industrial inkjet led acrylic uv printer with high resolution for sale in China

Our Services&Team

2017hot sale industrial large format factory industrial inkjet led acrylic uv printer with high resolution for sale in China


Our Services:

Excellent After-sale Services:
1.One year warranty
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request.


2. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge includes the airfreight by express, except for the print head and some consumable parts.


3. Free online consultation
The technician will keep online. No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.

4. Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it

Our Teams:

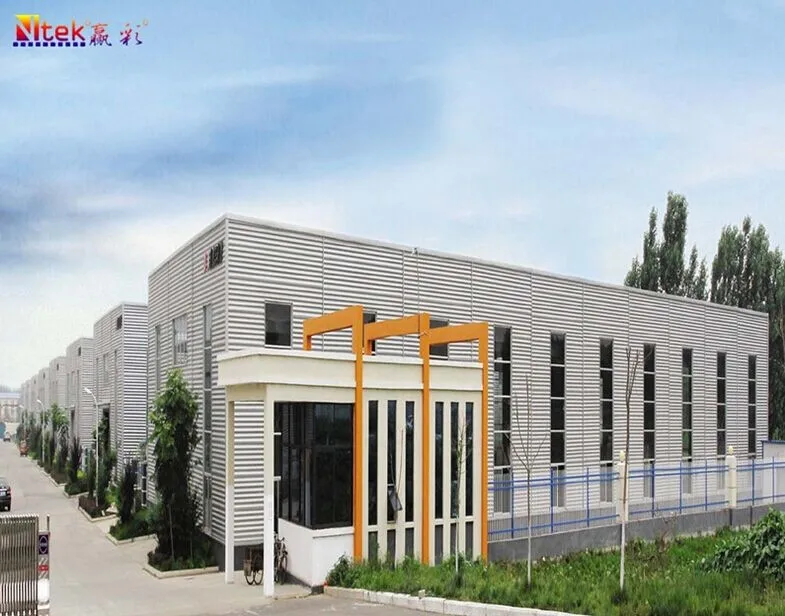

Factory&Workshop

2017hot sale industrial large format factory industrial inkjet led acrylic uv printer with high resolution for sale in China

Jinan Yingcai Digital Technology Co.,Ltd is founded in 2009 in Jinan city, Shandong Province, China. It is a high-tech machinery manufacturer, integrated with the R&D, Production, Sales and maintenance in a whole. We focus on produce stable performance large format UV Flatbed Printers and OEM Service is a available.

We have 8years experience in producing and exporting UV Flatbed Printer. With high quality printers and perfect service, our printers are welcome in Europe, Middle East and American market.

Our UV Flatbed Printer has widely used for print on glass, ceramic tile, PVC ceiling, aluminum plastic board, wood, MDF board, metal panel, billboard, Acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc, and for flexible materials such as PVC, canvas, leather and etc.

FAQ

1.Which country have been sold?
Spain, Turkey, Russia, India, Iran, Saudi Arabia, Malaysia, Australia, Ukraine, Hungary, Belerus, etc
How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
3.How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
4.What printhead can you use for the UV flatbed printer?
We can use Epson DX5/DX7 heads and SPT1020/SPT1024GS heads for our UV flatbed printers.

5.What is the difference of Epson DX5/DX7 heads and SPT1020/SPT1024GS heads UV flatbed printer?
Both heads are made in Japan.
Epson DX7 heads with 3.5pl in dot, working speed lower, b ut high resolution for advertising and signage printing mostly, and it can print CMYKWV with 2 or 4 heads.
SPT1020 heads with 35pl in dot, working speed fast and bright color printing for industrial production for decoration industry and glass industry. For example, ceramic tile wall, glass slider door for bathroom etc. And it can print CMYK LC LM W V with 8 heads, one head one color.
6.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers in Jinan city, Shandong province,China.
7.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump, printhead, ink filter, and slide block since they are consumables.

8.How can I install and start to use the printer?
At first, you should read the users' manual to understand the machine and watch the video. After you get the machine, our technician will teach you how to install and usemachine by remote control via Teamviewer or Skype. Whenever you have questions to the machine, you can contact our technician or me.
9.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
10.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
11.What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc.

2017hot sale industrial large format factory industrial inkjet led acrylic uv printer with high resolution for sale in China
